Escape-Room Prop · 2017–2019

Double Diffuse

Tactical Escape 101 · two-team cooperative prop

A large electronic prop split across two rooms — each team works an identical lifting box, and several puzzles can only be solved by communicating between rooms. Finish all seven puzzles on both boxes to open the door. Built with help from Professor Danielle Brake of the University of Wisconsin Eau Claire.

Arduino MegaCWireless box-to-box link Bit-manipulation stateMotorized lift7 puzzles × 2 boxes
Download Arduino source Back to portfolio
How it works

Design & Architecture

Two identical boxes, one Arduino Mega each, kept in sync over a low-bandwidth wireless link — the whole state of a box packed into a single variable.

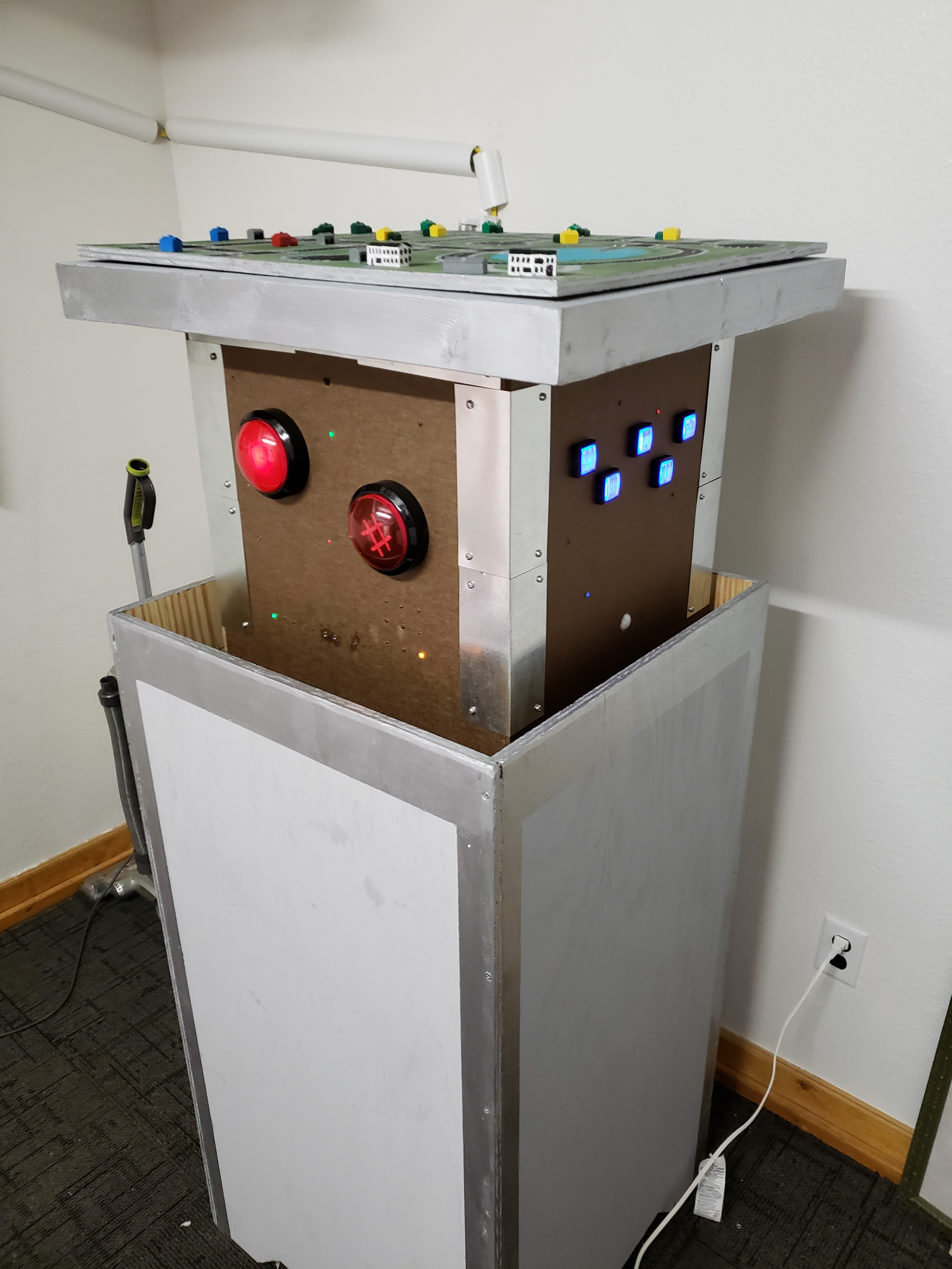

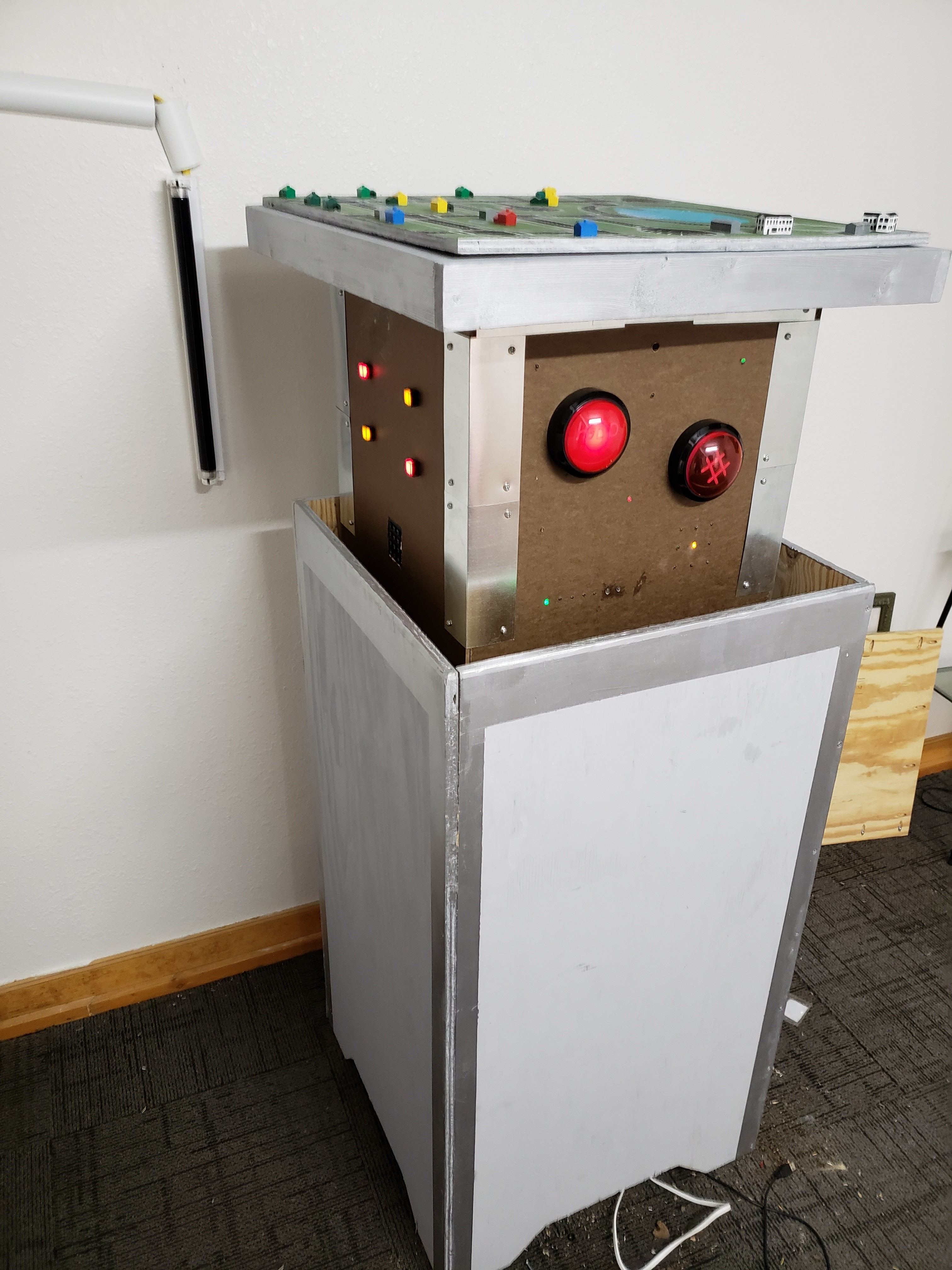

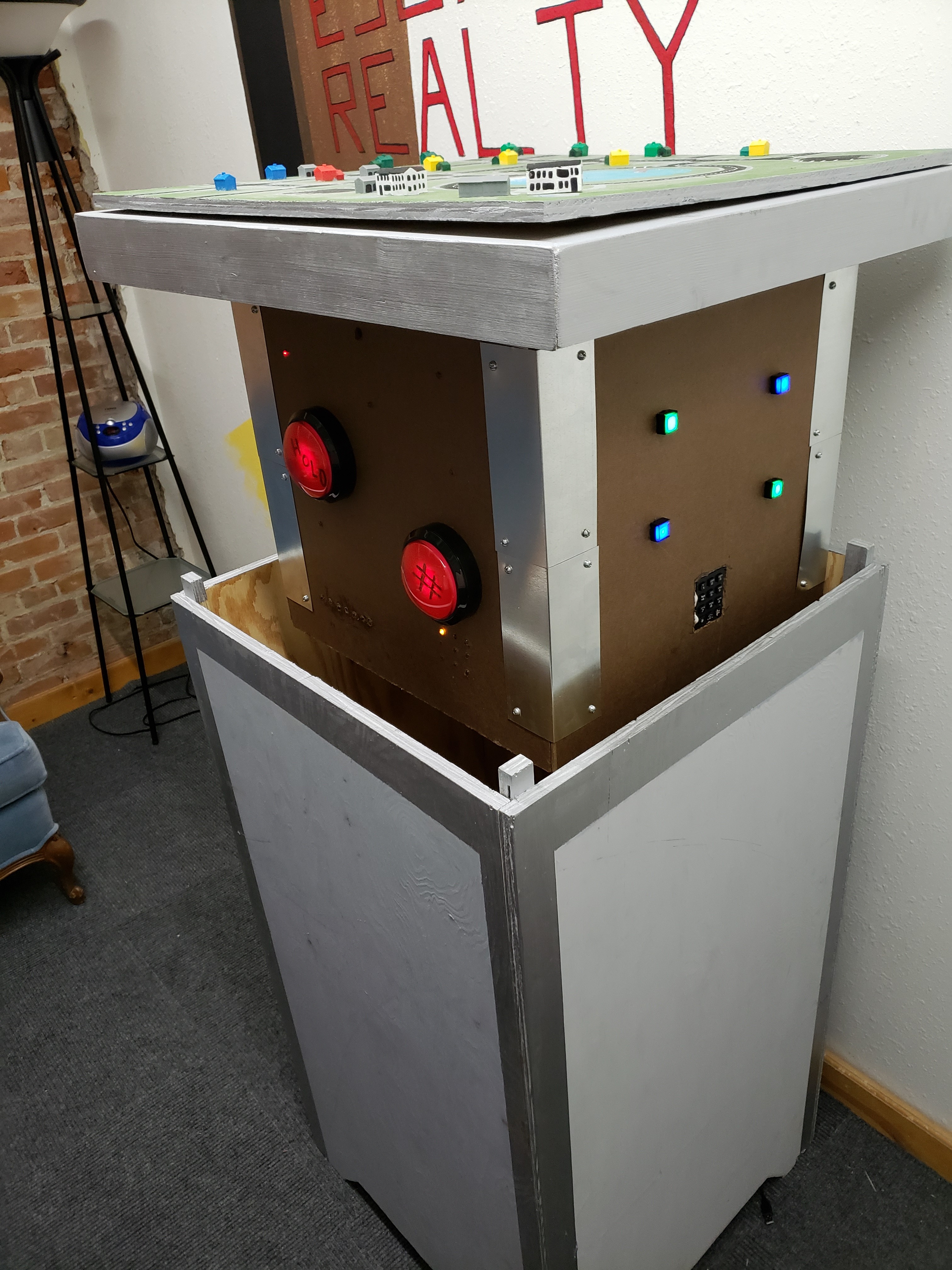

Each box starts as a 22 in × 22 in × 4 ft column and an internal motorized lift raises it to 6 ft when the round begins. Everything wires into one Arduino Mega per box. The trick to keeping two boxes in agreement is bit manipulation: a single buttonStates variable holds the whole puzzle state, and each solved part flips one bit with bitWrite(). Because the wireless transmitter can only reliably send one value and receive one value, packing all seven puzzle flags into a single integer lets each box learn what the other has solved within a second — which matters, since several puzzles must be solved on both boxes at once. Solving a part beeps and lights a green LED in the box's progress row; light all seven on both boxes and the door to the next room opens.

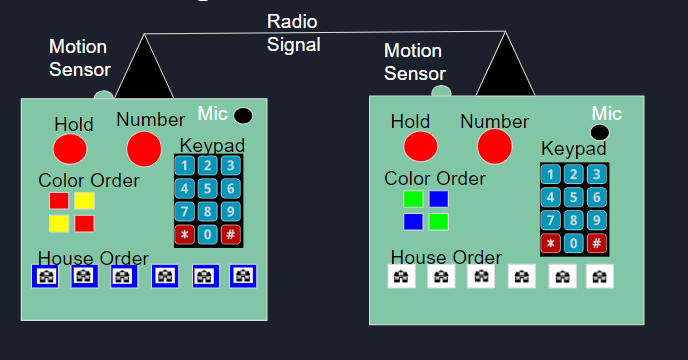

Double Diffuse box diagram
The Double Diffuse box and its seven puzzle stations.

The seven puzzles

Motion Sensor

A motion sensor at the top requires the player to stay still for 30 seconds or stand clear of it. Short in theory, but crowds gathered around the boxes and kept moving — even after the clue, impatience made this a sticking point.

Hold Button

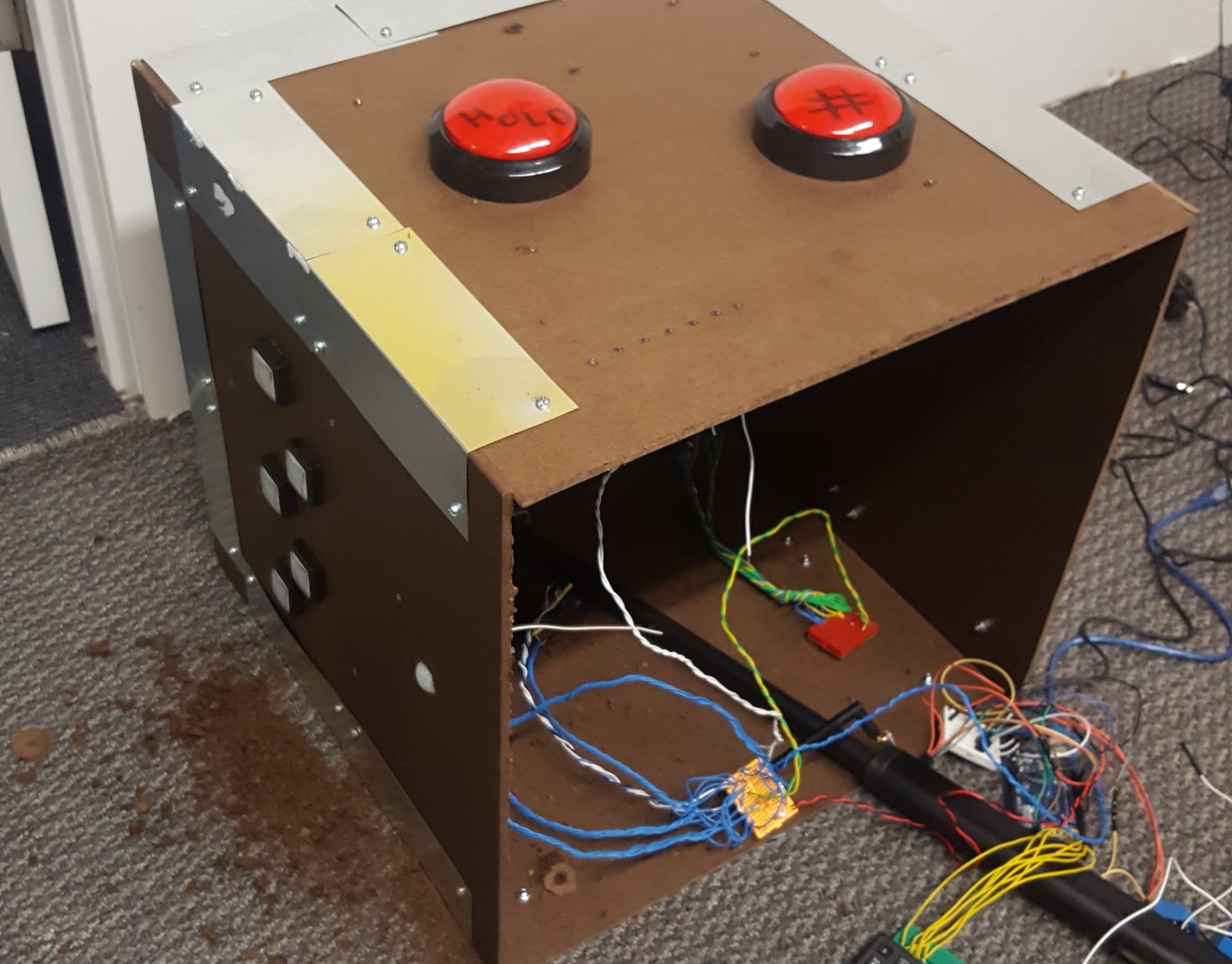

The first cross-room puzzle: a hold button on each box must be pressed for 30 seconds simultaneously. Simple on its own, but it forces the two teams (in separate rooms) to coordinate by phone.

Number Button

A 3×3 grid of LEDs counts 1–9, lighting one at a time. The button must be pressed while an odd-numbered LED is lit; a wrong press resets the count. Clear that and the pattern inverts — press when the 7th LED is off to finish.

Mic

A piezo "knock sensor" detects sharp volume changes — the player has to knock on the mic panel steadily for 15 seconds.

Color Order

Each box has a 2×2 grid of colored buttons in a different color pair. All eight buttons must be pressed in the correct order across both boxes, alternating box to box with each press — another forced-communication puzzle.

Keypad

Reuses the briefcase prop's keypad code, trimmed to a hidden 4-digit entry. A wrong code triggers a long beep and a lockout before the next attempt.

House Order

Like Color Order but with five buttons per box, each showing a different house style. Teams describe their styles to each other to agree on the order — by far the hardest part for groups to communicate.

House style buttons
The kind of house styles used on the House Order buttons.
Firmware

The Code

One sketch per box. They're near-identical — the differences are the color/house orders and which bits each box owns. Expand a listing to read the full source.

prop_1.ino
/*
*Arduino Bomb wireless 2 way transmittion code
* Lucas Dahl
*/

// ARDUINO FOR BOMB ONE BY ROUND TABLE

#include < SPI.h >
#include < nRF24L01.h >
#include < RF24.h >

#include "Arduino.h"
#include "Keypad.h"

    byte pipeNum = 0;
int buzzer = A10;
const byte ROWS = 4; //four rows
const byte COLS = 3; //three columns
char keys[ROWS][COLS] = {
  {'1','2','3'},
  {'4','5','6'},
  {'7','8','9'},
  {'*','0','#'}
};
byte rowPins[ROWS] = {26, 25, 24, 23}; //connect to the row pinouts of the keypad
byte colPins[COLS] = {29, 28, 27}; //connect to the column pinouts of the keypad
int timers = 0;

Keypad keypad = Keypad( makeKeymap(keys), rowPins, colPins, ROWS, COLS );

RF24 radio(7, 8); // CE, CSN
const byte address[][6] = {"00001","00002","00003","00004"};

int timer = 0;
int newtimer = 0;
//variables for buttons and their pin outputs
// the 4 small sqare buttons and their input states
int squareButton[] = {0,0,0,0,0};
int squarecheck = 0;
int othercheck = 0;
int largeSquares[] = {30,31,32,33,34};
int largecount = 0;

// the small square buttons and their pins
int squareBut[] = {0,0,0,0};
int test = 0;
int smallSquares[] = {37,35,38,36};
int smallcheck = 0;
int smallcount = 0;
int othersmall = 0;

int lift = 0;

//---------------------------------motion stuff
int motion = 39;
int motionsensor = 0;
int pirstate = LOW;
int motiontimer = 0;

//button states are the signals from both bombs, if a button is pressed
// the button is multiplied prime number and the other bomb reads
// the signal
long buttonStates = 0;
long buttonState = 0;
  int buttonStatet = 0;



// count is an array that will keep counts for when things are solved
int count[] = {0,0,0,0,0};



//the array to check when everything is satisfied
int finish[] = {0,0,0,0,0,0,0};
//the true or false state for the large and small buttons
int butState[] ={0,0,0,0,0,0,0,0,0,0,0};
int lastbutState[] ={0,0,0,0,0,0,0,0,0,0,0};


//----------------------------------------------------hold stuff
// pin values for the hold and number large buttons
int hold = 41;
// hold state reads if button is held
int holdState[] = {0,0};


//-------------------------------mic stuff
int mic = A0;
int micsensor = 0;
int miccount[] = {0,0};

//--------------------------- random led stuff
int randone =0;
int randtwo = 0;
int randleds[] = {11, 12, 13, A1, A2};
int randint = 0;
int placeholder = 0;

//------------------------------number button stuff
int counterleds[] = {49,53,2,5,4,3,10,9,6};
int countertimer= 0;
int countercount =0;
int num = 40;
// reads if the number is read correctly.
int numstate[] = {0,0};
int numcheck[] = {LOW,HIGH,0};

//------------------------------password stuff
int k = 0;
int password[4];
//password for 1 9 7 9
int pass[4] = {49,57,55,56};
int dummy = 0;

//------------------------------final stuff
int finalleds[] ={42,43,44,45,46,47,48};
int finalcount = 0;
int finalcheck = 0;
int timertwo = 0;
int timerthree =0;
int randtest=0;
int i = 0;

//analog pin for the lift relays
int lifter = A5;

//--------------------------------------------------------------------------SETUP-----------------------------------------------------------------------
void setup() {

  pinMode(buzzer, OUTPUT);
  digitalWrite(buzzer,HIGH);
  for (int i=0; i<10; i++){
  pinMode(randleds[i], OUTPUT);
  }
  pinMode(12, OUTPUT);
  pinMode(3, OUTPUT);
  pinMode(hold, INPUT);
  pinMode(num, INPUT);
  for(int j = 0;j<4;j++){
  pinMode(smallSquares[j], INPUT);
  }
    for(int j = 0;j<10;j++){
  pinMode(counterleds[j], OUTPUT);
  digitalWrite(counterleds[j],LOW);
  }
      for(int j = 0;j<7;j++){
  pinMode(finalleds[j], OUTPUT);
  digitalWrite(finalleds[j],LOW);
  }
  for(int j = 0;j<4;j++){
  pinMode(largeSquares[j], INPUT);
  }
  pinMode(motion, INPUT);
  pinMode(hold, INPUT);
  pinMode(num,INPUT);
  Serial.begin(9600);
  radio.begin();
  //opens up the channel to communicate between radios
  radio.openWritingPipe(address[3]);
  //reads from master room and sends tosafety send
  radio.openReadingPipe(0, address[0]);


  radio.setPALevel(RF24_PA_MIN);



}
//=================reads from back room sends to safety revieve
//============================================================================================LOOP=====================================================================================
void loop() {
//Serial.println(buttonStates);
//**********************************SENDING RADIO HERE*******************************************
   delay(5);
   radio.stopListening();



 //----------------------------------------------------------------Rand LEDS CODE----------------------------------------------------------------------------------
   numstate[0] = digitalRead(num);
   //Serial.println(numstate[0]);
   timertwo = millis();
   if ((timertwo - randtest) > 50){
    digitalWrite(randleds[placeholder],LOW);
    randtest = millis();
    randint = random(0,5);
    digitalWrite(randleds[randint],HIGH);
    placeholder = randint;
   }

   //-----------------------------------------------------------part 2 number button test-------------------------------------------------------------------------
   if (bitRead(buttonStates, 2) != 1){
      numstate[0] = digitalRead(num);
      //Serial.println(countercount);
      if(countercount == 1  && numstate[0] == 1 && numcheck[2]==0){
         numcheck[0]=HIGH;
         numcheck[1]=LOW;
         numcheck[2]=1;
         countercount = 1;
         for (int i=0; i<10; i++){
           digitalWrite(counterleds[i],LOW);
         }
         numstate[0]=0;
         Serial.println("yup");
       }
       if(numcheck[2] == 1 && countercount > 7 ){
         numcheck[2] =2;
       }
       if(numcheck[2]==2 && countercount %2 != 0 && numstate[0]==1){
         //Serial.println("led 1 set");
         finalcount++;
         Serial.println("number");
         bitWrite(buttonStates, 2, 1);
         for (int i=0; i<10; i++){
            digitalWrite(counterleds[i],LOW);
         }
       }
       if(countercount%2!=0 && numstate[0]==1 && bitRead(buttonStates,2) != 1 && numcheck[2] !=3 && numcheck[2] !=1){
         numcheck[0]=LOW;
         numcheck[1]=HIGH;
         numcheck[2]=3;
         countercount = 0;
         for (int i=0; i<10; i++){
            digitalWrite(counterleds[i],HIGH);
         }
         numstate[0]=0;
         Serial.println("nope");
       }
       if(numcheck[2] == 3 && countercount > 7 ){
         numcheck[2] =0;
       }
   }
   //----------------------------------------------------------------Part 2 Number button counter-------------------------------------------------------------------------------
   if ((timertwo - countertimer) > 1000 && bitRead(buttonStates,2) != 1){
    digitalWrite(counterleds[countercount],numcheck[1]);
    digitalWrite(counterleds[countercount - 1],numcheck[0]);
    countercount++;
    if(countercount == 1){
      digitalWrite(counterleds[8],numcheck[0]);
    }
   //Serial.println(countercount);

    if(countercount > 8){
      countercount =0;
    }
    countertimer = timertwo;
   }

// Serial.println("key");
   //--------------------------------------------------------------part 5 keypad-------------------------------------------------------------------------------------------------
   if(bitRead(dummy,5) != 1){
      char key = keypad.getKey();
      if(key)  // Check for a valid key.
      {
        password[k]= key;
        k++;

        //Serial.print(key);
      if(k>3)
      {
         for (int j=0;j<4;j++){
          Serial.println(password[j]);
          Serial.print(pass[j]);
          if (password[j] == pass[j]){
            count[2]++;
          }
          else{
            count[2]=0;
             k =0;
             smallbeep();
          }
         }
         }
       if(count[2] == 4){
          bitWrite(dummy, 5, 1);
          finalcount++;
          Serial.println("Keypad");
          //Serial.println(count[2]);
          //Serial.println("keypad");
       }
      }
   }

 //Serial.println("small");
//----------------------------------------------------------------part 6 small buttons-------------------------------------------------------------------------------------------
if(bitRead(buttonStates,6)!=1){
 for (int m=0;m<4;m++){
      squareBut[m] = digitalRead(smallSquares[m]);
    //Serial.print(m);
    //Serial.print(":");
    //Serial.println(squareBut[m]);
     }
   if(smallcheck == 0){
   //tests each button except for the button that is next in the sequence and if any are pressed it will restart largecount
   for (int m=0;m<4;m++){
      if (m != smallcount){
        //skip so it doesn't check the button it is on
        if (squareBut[m]==1){
          //if any fail it will reset the smallbutton section
          smallcount =0;
          smallcheck =0;
          bitWrite(buttonStates,10,1);
           bitWrite(buttonStates,9,0);
          //Serial.println("fail here");
          othersmall = 0;
        }
      }
      //if it is the button that is next it will skip it in the sequence, make sure this is at the end of the loop or it will test outside of the array
      if(m == smallcount){
        m++;
      }
    }
    //Serial.println(bitRead(buttonState,9));
    //makes sure the other room checked the next button
    if(bitRead(buttonState,9)==1 && othersmall ==0){
      othersmall++;
      bitWrite(buttonStates,9,0);
      //Serial.println("otherroom pass");
    }
    //if the next button is pressed, if it is the first button, and tests only if the other room past
    if(squareBut[smallcount]==1 && othersmall == 1){
      smallcount++;
      beep();
      bitWrite(buttonStates,9,1);
      bitWrite(buttonStates,10,0);
     // Serial.println(smallcount);
      smallcheck =1;
      othersmall =0;
      //Serial.println("passed");
    }

    //if the other room fails it resets everything including the fail test for this room
    if(bitRead(buttonState,10)==1){
      smallcount =0;
      smallcheck =0;
      bitWrite(buttonStates,10,0);
      bitWrite(buttonStates,9,0);
      //Serial.println("otherroom failed");

    }
  }
  //this is what resets the smallcheck when the button is released
  if(smallcount == 0 || (smallcheck == 1 && squareBut[smallcount -1] == 0)){
    smallcheck =0;
    bitWrite(buttonStates,10,0);
    //Serial.println("zeroed");
  }
  //when it reaches the last button in the series it activates
  if(smallcount > 3){
    finalcount ++;
    bitWrite(buttonStates, 6,1);
    Serial.println("Small Square");
  }


  if(bitRead(buttonState,6) == 1 && squareBut[3] ==1){
    finalcount ++;
    bitWrite(buttonStates, 6,1);
    Serial.println("Small Square");
  }
}


// Serial.println("large");
//-----------------------------------------------------------------------------------Large Button-------------------------------------------------------------------

// This if statement shuts off the large buttons when it is completed
if(bitRead(buttonStates,7)!=1){
  //Reads the five buttons if they are pushed or not, there is also a serial print incase an individual button needs to be identified
  for (int m=0;m<5;m++){
    squareButton[m] = digitalRead(largeSquares[m]);
    //Serial.print(m);
    //Serial.print(":");
    //Serial.println(squareButton[m]);
  }
  //the squarecheck function makes sure that the button is released before it checks again or else it will trigger again.
  if(squarecheck == 0){
   //tests each button except for the button that is next in the sequence and if any are pressed it will restart largecount
   for (int m=0;m<5;m++){
      if (m != largecount){
        //skip so it doesn't check the button it is on
        if (squareButton[m]==1){
          //if any fail it will reset the largebutton section
          largecount =0;
          squarecheck =0;
          bitWrite(buttonStates,14,1);
           bitWrite(buttonStates,13,0);
         // Serial.println("fail here");
          othercheck = 0;
        }
      }
      //if it is the button that is next it will skip it in the sequence, make sure this is at the end of the loop or it will test outside of the array
      if(m == largecount){
        m++;
      }
    }
    //Serial.println(bitRead(buttonState,13));
    //makes sure the other room checked the next button
    if(bitRead(buttonState,13)==1 && othercheck ==0){
      othercheck++;
      bitWrite(buttonStates,13,0);
      //Serial.println("otherroom pass");
    }
    //if the next button is pressed, if it is the first button, and tests only if the other room past
    if(squareButton[largecount]==1 && othercheck == 1){
      largecount++;
      beep();
      bitWrite(buttonStates,13,1);
      bitWrite(buttonStates,14,0);
      //Serial.println(largecount);
      squarecheck =1;
      othercheck =0;
      //Serial.println("passed");
    }

    //if the other room fails it resets everything including the fail test for this room
    if(bitRead(buttonState,14)==1){
      largecount =0;
      squarecheck =0;
      bitWrite(buttonStates,14,0);
      bitWrite(buttonStates,13,0);
      //Serial.println("otherroom failed");

    }
  }
  //this is what resets the squarecheck when the button is released
  if(largecount == 0 || (squarecheck == 1 && squareButton[largecount -1] == 0)){
    squarecheck =0;
    bitWrite(buttonStates,14,0);
    //Serial.println("zeroed");
  }
  //when it reaches the last button in the series it activates
  if(largecount > 4 || bitRead(buttonState, 7)==1 ){
    finalcount ++;
    bitWrite(buttonStates, 7,1);
    Serial.println("Big Square");
  }
}

 //Serial.println("motionSensor");
//--------------------------------------------------------------------------------part 3 motion sensor--------------------------------------------------------------------------
  if( bitRead(buttonStates,3) != 1){
    //Serial.println(motiontimer);
     motionsensor = digitalRead(motion);  // read input value
     //Serial.println(motionsensor);
     if (motionsensor == HIGH) {            // check if the input is HIGH
       if (pirstate == LOW) {
         pirstate = HIGH;
         motiontimer = timertwo;
         count[1] =0;
         //Serial.println("deteckted");
       }
     } else {
       if (pirstate == HIGH){
         pirstate = LOW;
         //Serial.println("busted");
         count[1] = 0;
       }
       if (pirstate == LOW && timertwo - motiontimer > 3000){
        count[1]++;
        motiontimer = timertwo;
        //Serial.println(count[1]);
       }
       if (count[1] >90){
          bitWrite(buttonStates, 3, 1);
          finalcount++;
          Serial.println("motionsensor");
       }
     }
  }
//----------------------------------------------------------------------------------part 4 nock knnock----------------------------------------------------------------------------------
if(timertwo > 5000){
  timers = 1;
}
 if(bitRead(buttonStates,4) != 1 && timers == 1){
     micsensor = analogRead(mic);
     Serial.println(micsensor);

     if(micsensor < 150 && miccount[1] == 0){
        miccount[0]++;
        miccount[1] = 1;
        Serial.println(miccount[0]);
         timer = millis();
     }
    if(micsensor < 150 && miccount[1] == 1){
        miccount[0]++;
        miccount[1] = 1;
        //Serial.println(miccount[0]);

     }

     if(miccount[1] == 1 && (timertwo - timer  < 30000) && miccount[0] > 15){
         bitWrite(buttonStates, 4, 1);
         finalcount++;
         Serial.println("Knock Knock");
     }
     if(miccount[1] ==1 && timertwo - timer > 30000){
      miccount[0] =0;
      miccount[1]= 0;
      timer = millis();
     }
 }
 //----------------------------------------------------------------------------------------part 1 hold--------------------------------------------------------------------------------------
 if(bitRead(buttonState,1)==1){
  bitWrite(buttonStates,1,1);
 }
 if(bitRead(buttonStates,1)!=1){
 holdState[0] = digitalRead(hold);
 if (holdState[0] == HIGH ){
  if(bitRead(buttonStates,8)!=1){
  bitWrite(buttonStates, 8, 1);
  }
 }
 else{
  holdState[1] = timertwo;
  if(bitRead(buttonStates,8)==1){
   bitWrite(buttonStates, 8, 0);
  }
 }
 if ( (holdState[0]== HIGH && bitRead(buttonState,8)==1 && timertwo - holdState[1] > 30000) || bitRead(buttonState, 1) ==1){
    Serial.println("HOLD");
    bitWrite(buttonStates,1,1);
    finalcount++;
 }
}

 //-------------------------------------------------------------------------------------------final leds------------------------------------------------------------------------------------
if (finalcount >0){
  digitalWrite(finalleds[finalcheck],HIGH);
  finalcount = finalcount -1;
  beep();
  finalcheck++;
}
if (finalcheck >6){
  bitWrite(buttonStates,12,1);
}
else{
  bitWrite(buttonStates,12,0);
}
 //Serial.println(bitRead(buttonStates,15));
 radio.write(&buttonStates, sizeof(buttonStates));
 //Serial.println("goodbye");
 //chennel 3
//****************************************LISTENING HERE******************************************


  radio.startListening();


    if (radio.available()){
     radio.read(&lift, sizeof(lift));
     //Serial.print("address[0]:  ");
     //Serial.println(lift);
     buttonState = lift;
  }
  //Serial.println(buttonState);
  if(bitRead(lift,15) == 1){
  bitWrite(buttonStates,15,1);
      analogWrite(lifter,1000);

  }
  if(bitRead(lift,15)==0){
    bitWrite(buttonStates,15,0);
    analogWrite(lifter,000);
    for (int m=0;m<18;m++){
      bitWrite(buttonStates,m,0);
      bitWrite(buttonState,m,0);
      finalcheck=0;
      digitalWrite(finalleds[m],LOW);
      numcheck[2]=0;
      countercount =0;
      numstate[0]=0;
      k = 0;
      smallcheck =0;
      smallcount =0;
      squarecheck =0;
      largecount =0;
      count[1] = 0;
      miccount[0] =0;
      miccount[1]= 0;
      timer = millis();
      dummy = 0;
 }
  }
Serial.println(bitRead(lift,5));
Serial.println("Hello");

  if(bitRead(lift,5) == 1 && bitRead(dummy,2) == 0){
    Serial.println("countEr");
    bitWrite(buttonStates,5,1);
    finalcount++;
    bitWrite(dummy,2,1);
  }

  if(bitRead(lift,5) ==0){
    bitWrite(buttonStates,5,0);
    bitWrite(dummy,2,0);
  }

  }

void beep(){
  digitalWrite(buzzer,LOW);
  delay(70);
  digitalWrite(buzzer,HIGH);
}
void smallbeep(){
    digitalWrite(buzzer,LOW);
  delay(5);
  digitalWrite(buzzer,HIGH);
}
prop_2.ino
/*
*Arduino Bomb wireless 2 way transmittion code
* Lucas Dahl
*/

// ARDUINO FOR BOMB TWO BY ROUND TABLE

#include < SPI.h >
#include < nRF24L01.h >
#include < RF24.h >
#include < EEPROM.h >
#include "Arduino.h"
#include "Keypad.h"

     byte pipeNum = 0;
    int buttonStatet  = 0;
int buzzer = A11;
const byte ROWS = 4; //four rows
const byte COLS = 3; //three columns
char keys[ROWS][COLS] = {
  {'1','2','3'},
  {'4','5','6'},
  {'7','8','9'},
  {'*','0','#'}
};
byte rowPins[ROWS] = {26, 25, 24, 23}; //connect to the row pinouts of the keypad
byte colPins[COLS] = {29, 28, 27}; //connect to the column pinouts of the keypad
int timers = 0;
int finalcheck = 0;
Keypad keypad = Keypad( makeKeymap(keys), rowPins, colPins, ROWS, COLS );

#define button 4
RF24 radio(7, 8); // CE, CSN
const byte address[][6] = {"00001","00002","00003","00004"};
int dummy =0;
int lift =0;
int timer = 0;
int newtimer = 0;
//variables for buttons and their pin outputs
// the 4 small sqare buttons and their input states
int squareButton[] = {0,0,0,0,0};
int squarecheck = 0;
int othercheck = 0;
int largeSquares[] = {30,31,32,33,34};
int largecount = 0;
// the small square buttons and their pins
int squareBut[] = {0,0,0,0};
int test = 0;
int smallSquares[] = {37,35,38,36};
int smallcheck = 0;
int othersmall = 0;
int smallcount = 0;


//---------------------------------motion stuff
int motion = 39;
int motionsensor = 0;
int pirstate = LOW;
int motiontimer = 0;

//button states are the signals from both bombs, if a button is pressed
// the button is multiplied by a prime number and the other bomb reads
// the signal
int buttonState = 0;
//button states is the other bomb side
int buttonStates = 0;


// count is an array that will keep counts for when things are solved
int count[] = {0,0,0,0,0};



//the array to check when everything is satisfied
int finish[] = {0,0,0,0,0,0,0};
//the true or false state for the large and small buttons
int butState[] ={0,0,0,0,0,0,0,0,0,0,0};
int lastbutState[] ={0,0,0,0,0,0,0,0,0,0,0};


//----------------------------------------------------hold stuff
// pin values for the hold and number large buttons
int hold = 40;
// hold state reads if button is held
int holdState[] = {0,0};


//-------------------------------mic stuff
int mic = A13;
int micsensor = 0;
int miccount[] = {0,0};

//--------------------------- random led stuff
int randone =0;
int randtwo = 0;
int randleds[] = {A0,A1,A2,A3,A4,A5,A6,A7,A8,A9};
int randint = 0;
int placeholder = 0;

//------------------------------number button stuff
//int counterleds[] = {53,49,2,3,4,5,6,9,10,11};
int counterleds[] = {6,10,9,4,2,49,3,53,5};
int countertimer= 0;
int countercount =0;
int num = 41;
// reads if the number is read correctly.
int numstate[] = {0,0};
int numcheck[] = {LOW,HIGH,0};

//------------------------------password stuff
int k = 0;
int password[4];
int pass[4] = {50,48,48,50};

//------------------------------final stuff
int finalleds[] ={42,43,44,45,46,47,48};
int finalcount = 0;
int finalcheckk = 0;
int timertwo = 0;
int timerthree = 0;
int randtest=0;
int i = 0;

//--------------------------------------------------------------------------SETUP-----------------------------------------------------------------------
void setup() {

  pinMode(buzzer, OUTPUT);
  digitalWrite(buzzer,HIGH);
  for (int i=0; i<10; i++){
  pinMode(randleds[i], OUTPUT);
  }
  pinMode(12, OUTPUT);
  pinMode(3, OUTPUT);
  pinMode(hold, INPUT);
  pinMode(num, INPUT);
  for(int j = 0;j<4;j++){
  pinMode(smallSquares[j], INPUT);
  }
    for(int j = 0;j<12;j++){
  pinMode(counterleds[j], OUTPUT);
  digitalWrite(counterleds[j],LOW);
  }
      for(int j = 0;j<7;j++){
  pinMode(finalleds[j], OUTPUT);
  digitalWrite(finalleds[j],LOW);
  }
  for(int j = 0;j<4;j++){
  pinMode(largeSquares[j], INPUT);
  }
  pinMode(motion, INPUT);
  pinMode(hold, INPUT);
  pinMode(num,INPUT);
  pinMode(A15,OUTPUT);
  digitalWrite(A15,LOW);
  Serial.begin(9600);
  radio.begin();
  //opens up the channel to communicate between radios
  radio.openWritingPipe(address[2]);
  //reads safety send and sends to podium
  radio.openReadingPipe(0, address[3]);

  radio.setPALevel(RF24_PA_MIN);



}
//                  Reads from Safetysend sends to podium
//============================================================================================LOOP=====================================================================================
void loop() {

//**********************************SENDING RADIO HERE*******************************************
   delay(5);
   radio.stopListening();
 //----------------------------------------------------------------Rand LEDS CODE----------------------------------------------------------------------------------
   numstate[0] = digitalRead(num);
   //Serial.println(numstate[0]);
   timertwo = millis();
   if ((timertwo - randtest) > 50){
    digitalWrite(randleds[placeholder],LOW);
    randtest = millis();
    randint = random(0,10);
    digitalWrite(randleds[randint],HIGH);
    placeholder = randint;
   }

   //-----------------------------------------------------------part 2 number button test-------------------------------------------------------------------------
   if (bitRead(buttonState,2) !=1){
      numstate[0] = digitalRead(num);
      if(countercount != 0 && countercount %2==0 && numstate[0] == 1 && numcheck[2]==0){
         numcheck[0]=HIGH;
         numcheck[1]=LOW;
         numcheck[2]=1;
         countercount = 1;
         for (int i=0; i<10; i++){
           digitalWrite(counterleds[i],LOW);
         }
         numstate[0]=0;
         //Serial.println("yup");
       }
       if(numcheck[2] == 1 && countercount > 7 ){
         numcheck[2] =2;
       }
       if(numcheck[2]==2 && countercount == 7 && numstate[0]==1){
         //Serial.println("led 1 set");
         finalcount++;
         Serial.println("number");
         bitWrite(buttonState,2,1);
         for (int i=0; i<10; i++){
            digitalWrite(counterleds[i],LOW);
         }
       }
       if(countercount%2!=0 && numstate[0]==1 && bitRead(buttonState,2) !=1 && numcheck[2] !=3 && numcheck[2] !=1){
         numcheck[0]=LOW;
         numcheck[1]=HIGH;
         numcheck[2]=3;
         countercount = 0;
         for (int i=0; i<10; i++){
            digitalWrite(counterleds[i],LOW);
         }
         numstate[0]=0;
         //Serial.println("nope");
       }
       if(numcheck[2] == 3 && countercount > 7 ){
         numcheck[2] =0;
       }
   }

   //----------------------------------------------------------------Part 2 Number button counter-------------------------------------------------------------------------------
   if ((timertwo - countertimer) > 1000 && bitRead(buttonState,2) !=1){
    digitalWrite(counterleds[countercount],numcheck[1]);
    digitalWrite(counterleds[countercount - 1],numcheck[0]);
    countercount++;
   //Serial.println(countercount);
   if(countercount == 1){
    digitalWrite(counterleds[8],numcheck[0]);
   }
    if(countercount > 8){
      countercount =0;
    }
    countertimer = timertwo;
   }

   //--------------------------------------------------------------part 5 keypad-------------------------------------------------------------------------------------------------
   if(bitRead(dummy,5)!=1){
      char key = keypad.getKey();
      if(key)  // Check for a valid key.
      {
        password[k]= key;
        //smallbeep();
        k++;
        Serial.print(key);
      if(k>3)
      {
         for (int j=0;j<4;j++){
          //Serial.println(password[j]);
          //Serial.print(pass[j]);
          if (password[j] == pass[j]){
            count[2]++;

          }
          else{
            count[2]=0;
             smallbeep();
  //           smallbeep();
    //         smallbeep();
             k =0;
          }
          //Serial.println(count[2]);
         }
          //bitWrite(buttonState,5,1);
          //finalcount++;
         }
       if(count[2] == 4){
          bitWrite(dummy,5,1);
          finalcount++;
          Serial.println("Keypad");
          //Serial.println(count[2]);
          //Serial.println("keypad");
       }
      }
   }

//----------------------------------------------------------------part 6 small buttons-------------------------------------------------------------------------------------------
if(bitRead(buttonState,6)!=1){
 for (int m=0;m<4;m++){
    squareBut[m] = digitalRead(smallSquares[m]);
    //Serial.print(m);
    //Serial.print(":");
    //Serial.println(squareBut[m]);
     }
   if(smallcheck == 0){
   //tests each button except for the button that is next in the sequence and if any are pressed it will restart largecount
   for (int m=0;m<4;m++){
      if (m != smallcount){
        //skip so it doesn't check the button it is on
        if (squareBut[m]==1){
          //if any fail it will reset the smallbutton section
          smallcount =0;
          smallcheck =0;
          bitWrite(buttonState,10,1);
           bitWrite(buttonState,9,0);
         // Serial.println("fail here");
          othersmall = 0;
        }
      }
      //if it is the button that is next it will skip it in the sequence, make sure this is at the end of the loop or it will test outside of the array
      if(m == smallcount){
        m++;
      }
    }
    //Serial.println(bitRead(buttonState,9));
    //makes sure the other room checked the next button
    if(bitRead(buttonStates,9)==1 && othersmall ==0){
      othersmall++;
      bitWrite(buttonState,9,0);
    //  Serial.println("otherroom pass");
    }
    //if the next button is pressed, if it is the first button, and tests only if the other room past
    if(squareBut[smallcount]==1 && (othersmall == 1 || smallcount ==0)){
      smallcount++;
      beep();
      bitWrite(buttonState,9,1);
      bitWrite(buttonState,10,0);
      //Serial.println(smallcount);
      smallcheck =1;
      othersmall =0;
    //  Serial.println("passed");
    }

    //if the other room fails it resets everything including the fail test for this room
    if(bitRead(buttonStates,10)==1){
      smallcount =0;
      smallcheck =0;
      bitWrite(buttonState,10,0);
      bitWrite(buttonState,9,0);
     // Serial.println("otherroom failed");

    }
  }
  //this is what resets the smallcheck when the button is released
  if(smallcount == 0 || (smallcheck == 1 && squareBut[smallcount -1] == 0)){
    smallcheck =0;
    bitWrite(buttonState,10,0);
    //Serial.println("zeroed");
  }
  //when it reaches the last button in the series it activates
  if(smallcount > 3){
    finalcount ++;
    bitWrite(buttonState, 6,1);
    Serial.println("Small Square");
  }
  if(bitRead(buttonStates,6) == 1 && squareBut[3] ==1){
    finalcount ++;
    bitWrite(buttonState, 6,1);
    Serial.println("Small Square");
  }
}
//-------------------------------------------------------------------part 7 Large Buttons---------------------------------------------------------------------------------------

// This if statement shuts off the large buttons when it is completed
if(bitRead(buttonState,7)!=1){
  //Reads the five buttons if they are pushed or not, there is also a serial print incase an individual button needs to be identified
  for (int m=0;m<5;m++){
    squareButton[m] = digitalRead(largeSquares[m]);
    //Serial.print(m);
    //Serial.print(":");
    //Serial.println(squareButton[m]);
  }
  //the squarecheck function makes sure that the button is released before it checks again or else it will trigger again.
  if(squarecheck == 0){
   //tests each button except for the button that is next in the sequence and if any are pressed it will restart largecount
   for (int m=0;m<5;m++){
      if (m != largecount){
        //skip so it doesn't check the button it is on
        if (squareButton[m]==1){
          //if any fail it will reset the largebutton section
          largecount =0;
          squarecheck =0;
          bitWrite(buttonState,14,1);
          bitWrite(buttonState,13,0);
          //Serial.println("fail large button");
          othercheck =0;

        }
      }
      //if it is the button that is next it will skip it in the sequence, make sure this is at the end of the loop or it will test outside of the array
      if(m == largecount){
        m++;
      }
    }
        if(bitRead(buttonStates,13)==1 && othercheck ==0){
      othercheck++;
      bitWrite(buttonState,13,0);
     // Serial.println("otherroom pass");
    }
    //if the next button is pressed, if it is the first button, and tests only if the other room past
    if(squareButton[largecount]==1 && (othercheck == 1 || largecount ==0)){
      largecount++;
      bitWrite(buttonState,13,1);
      bitWrite(buttonState,14,0);
      //Serial.println(largecount);
      //Serial.println("next button");
      squarecheck =1;
      othercheck =0;
      beep();
    }
    //Serial.println(bitRead(buttonStates,13));
    //makes sure the other room checked the next button

    //if the other room fails it resets everything including the fail test for this room
    if(bitRead(buttonStates,14)==1){
      largecount =0;
      squarecheck =0;
      bitWrite(buttonState,14,0);
      bitWrite(buttonState,13,0);
     // Serial.println("otherroom fail");
    }
  }
  //this is what resets the squarecheck when the button is released
  if(largecount == 0 || (squarecheck == 1 && squareButton[largecount -1] == 0)){
    squarecheck =0;
    bitWrite(buttonState,14,0);
    //Serial.println("zeroed");
  }
  //when it reaches the last button in the series it activates
  if(largecount > 4 || bitRead(buttonStates, 7) ==1){
    finalcount ++;
    bitWrite(buttonState, 7,1);
    Serial.println("LARGE SQUARE PASS");

  }
}
//-------------------------------------------------------------------------------part 3 motion sensor--------------------------------------------------------------------------
  if( bitRead(buttonState,3)!=1){
    //Serial.println(motiontimer);
     motionsensor = digitalRead(motion);  // read input value
     //Serial.println(motionsensor);
     if (motionsensor == HIGH) {            // check if the input is HIGH
       if (pirstate == LOW) {
         pirstate = HIGH;
         motiontimer = timertwo;
         count[1] =0;
       }
     } else {
       if (pirstate == HIGH){
         pirstate = LOW;
         count[1] = 0;
       }
       if (pirstate == LOW && timertwo - motiontimer > 3000){
        count[1]++;
        motiontimer = timertwo;
        //Serial.println(count[1]);
       }
       if (count[1] >90){
          bitWrite(buttonState,3,1);
          finalcount++;
          Serial.println("motionsensor");
       }
     }
  }
//----------------------------------------------------------------------------------part 4 nock knnock----------------------------------------------------------------------------------
if(timertwo > 5000){
  timers = 1;
}
 if(bitRead(buttonState,4)!=1 && timers == 1){
     micsensor = analogRead(mic);
     Serial.println(micsensor);
     //Serial.println(micsensor);
     if(micsensor < 10 && miccount[1] == 0){
        miccount[0]++;
        miccount[1] = 1;
        //Serial.println(miccount[0]);
         timer = millis();
     }
    if(micsensor < 10 && miccount[1] == 1){
        miccount[0]++;
        miccount[1] = 1;
        Serial.println(miccount[0]);

     }

    if(miccount[1] == 1 && (timertwo - timer  	< 30000) && miccount[0] 	> 10){
         bitWrite(buttonState,4,1);
         finalcount++;
         Serial.println("Knock Knock");
     }
     if(miccount[1] ==1 && timertwo - timer > 30000){
      miccount[0] =0;
      miccount[1]= 0;
      timer = millis();
     }
 }
 //----------------------------------------------------------------------------------------part 1 hold--------------------------------------------------------------------------------------
  if(bitRead(buttonState,1)==1){
  bitWrite(buttonState,1,1);
 }
 if(bitRead(buttonState,1)!=1){
 holdState[0] = digitalRead(hold);
 if (holdState[0] == HIGH ){
  if(bitRead(buttonState,8)!=1){
  bitWrite(buttonState, 8, 1);
  }
 }
 else{
  holdState[1] = timertwo;
  if(bitRead(buttonState,8)==1){
   bitWrite(buttonState, 8, 0);
  }
 }
 if ( (holdState[0]== HIGH && bitRead(buttonStates,8)==1 && timertwo - holdState[1] > 30000)|| bitRead(buttonStates,1) ==1){
    Serial.println("HOLD");
    bitWrite(buttonState,1,1);
    finalcount++;
 }
}

 //-------------------------------------------------------------------------------------------final leds------------------------------------------------------------------------------------
if (finalcount >0){
  digitalWrite(finalleds[finalcheckk],HIGH);
  finalcount = 0;
  beep();
  finalcheckk++;
}
if(finalcheckk >6){
  bitWrite(buttonState, 12, 1);
}
else{
  bitWrite(buttonState, 12, 0);
}
 //Serial.println(buttonState);
 radio.write(&buttonState, sizeof(buttonState));
//channel 2

//****************************************LISTENING HERE******************************************


 radio.startListening();


    if (radio.available()){

     radio.read(&buttonStates, sizeof(buttonStates));
     //Serial.print("address[0]:  ");
     //Serial.println(bitRead(buttonStates,15));
    }


//Serial.println(bitRead(lift,1));
if (bitRead(buttonStates,15)==1){
  bitWrite(buttonState,15,1);
  digitalWrite(12,LOW);
  Serial.println("HELLO");
}
if (bitRead(buttonStates,15)==0){
  bitWrite(buttonStates,15,0);
  digitalWrite(12, HIGH);
  Serial.println("BYE");
  for (int m=0;m<18;m++){
    bitWrite(buttonStates,m,0);
    bitWrite(buttonState,m,0);
    finalcheckk=0;
    digitalWrite(finalleds[m],LOW);
    numcheck[2]=0;
    countercount =0;
    numstate[0]=0;
    k = 0;
    smallcheck =0;
    smallcount =0;
    squarecheck =0;
    largecount =0;
    count[1] = 0;
    miccount[0] =0;
    miccount[1]= 0;
    dummy = 0;
     timer = millis();
  }
}

  if(bitRead(buttonStates,5) == 1 && bitRead(dummy, 2) == 0){
    Serial.println("countEr");
    bitWrite(buttonState,5,1);
    finalcount++;
    bitWrite(dummy, 2,1);
  }
  if(bitRead(buttonStates,5) ==0){
    bitWrite(buttonState,5,0);
    bitWrite(dummy,2,0);
  }
  }
  //Serial.println(buttonStates);
  //Serial.println(buttonState);


void beep(){
  digitalWrite(buzzer,LOW);
  delay(20);
  digitalWrite(buzzer,HIGH);
}

void smallbeep(){
  digitalWrite(buzzer,LOW);
  delay(10);
  digitalWrite(buzzer,HIGH);
}
